Boring &Collet Chuck Form E

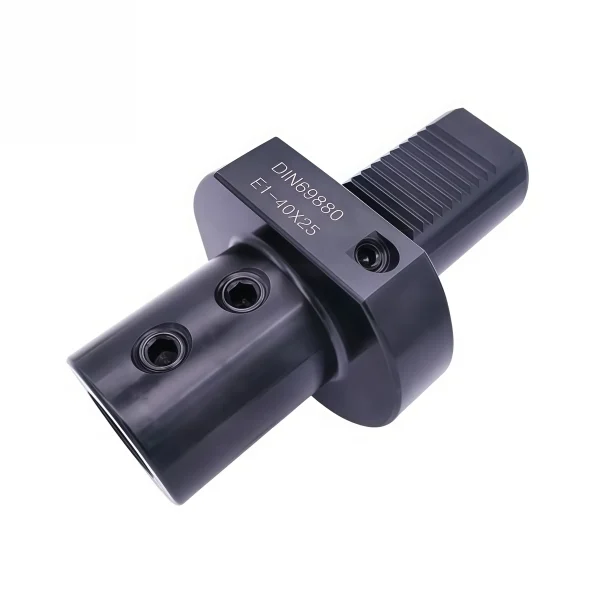

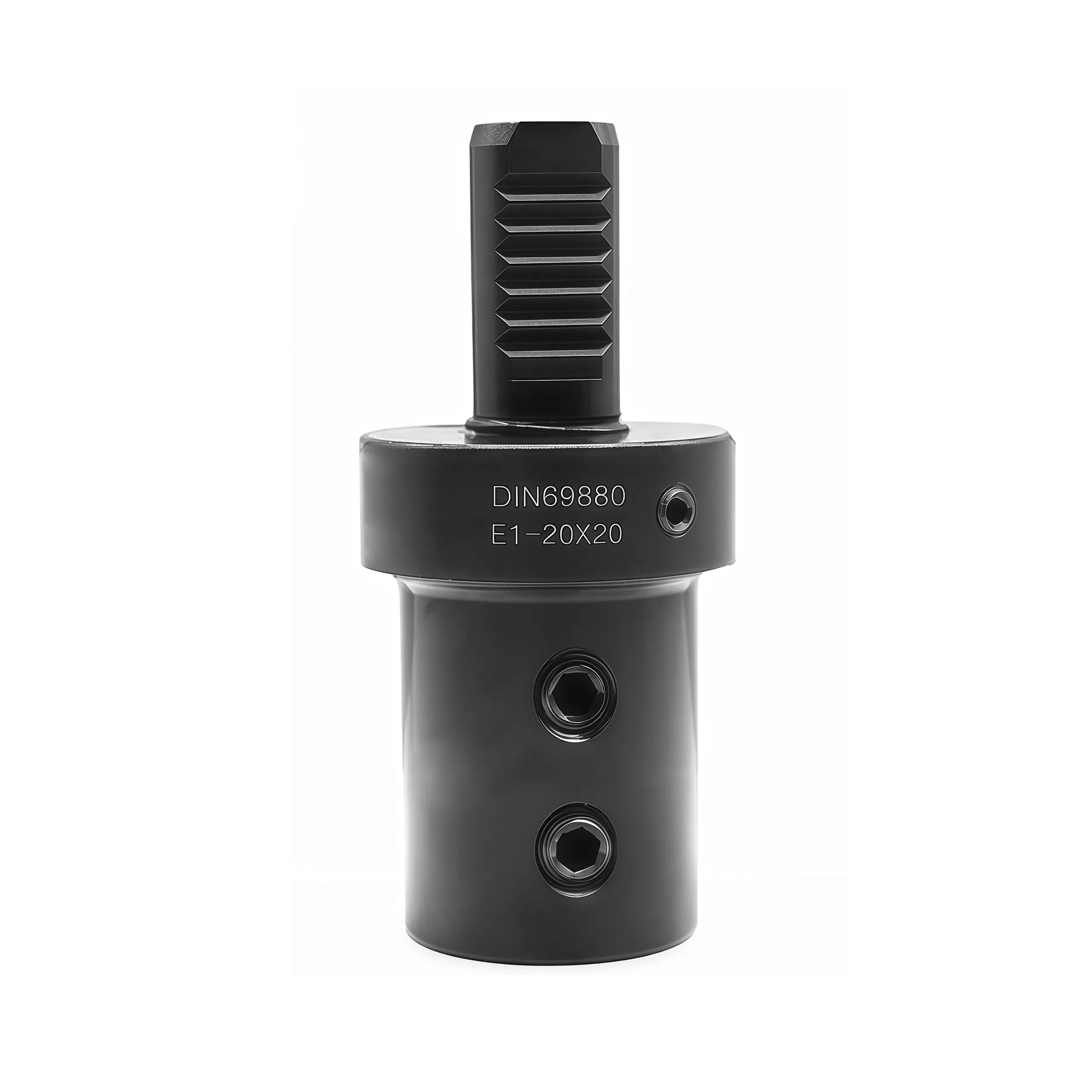

Boring Holder for Indexable Insert Drill Form E1

Built with a high-strength alloy steel body and carbide tip, this dead center provides stable support and wear-resistant performance for precision turning and grinding applications.

Request a Quote

Product Details & Technical Resources

CAD Drawings

Access product dimension drawings and structural references to support selection, installation and project planning.

Technical Specifications

Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.

订单号 order No.	d1	d3	d4	d5	d6	h1	h2	L1	L2	L3	L4	L5
E1-20×10	20	32	8	M8	50	二	23	67	54	18	15	35
E1-20×12	20	32	8	M10	50	一	23	67	54	18	15	35
E1-20×14	20	36	10	M10	50	一	23	67	54	22	15	35
E1-20×16	20	40	12	M10	50	一	23	67	54	18	15	35
E1-20×20	20	40	12	M10	50	二	23	67	54	18	15	35
E1-20×25	20	45	17	M12	50	二	23	71	59	18	17	40
E1-25×16	25	40	12	M10	58	25	25	67	54	18	15	35
E1-25×20	25	40	12	M10	58	25	25	67	54	18	15	35
E1-25×25	25	45	17	M12	58	25	25	71	59	18	17	40
E1-25×32	25	52	24	M12	58	25	25	75	63	18	17	44
E1-30×10	30	32	8	M8	68	28	30	67	54	22	15	35
E1-30×12	30	32	8	M10	68	28	30	67	54	22	15	35
E1-30×14	30	36	10	M10	68	28	30	67	54	22	15	35
E1-30×16	30	40	12	M10	68	28	30	67	54	22	15	35
E1-30×20	30	40	12	M10	68	28	30	67	54	22	15	35
E1-30×25	30	45	17	M12	68	28	30	71	59	22	17	40
E1-30×32	30	52	24	M12	68	28	30	75	63	22	17	44
E1-30×40	30	65	24	M16	68	28	30	90	73	22	22	50
E1-40×10	40	32	8	M8	83	32.5	一	67	54	22	15	35
E1-40×12	40	32	8	M10	83	32.5	一	67	54	22	15	35
E1-40×14	40	36	10	M10	83	32.5	一	67	54	22	15	35
E1-40×16	40	40	12	M10	83	32.5	一	67	54	22	15	35
E1-40×18	40	40	12	M10	83	32.5	一	67	54	22	15	35
E1-40×20	40	40	12	M10	83	32.5	一	67	54	22	15	35
E1-40×25	40	45	17	M12	83	32.5	一	75	59	22	17	40
E1-40×32	40	52	24	M12	83	32.5	一	75	63	22	17	44
E1-40×40	40	65	25	M16	83	32.5	一	90	73	22	22	50
E1-40×50	40	75	32	M16	83	32.5	一	100	83	22	24	60
E1-40×50	50	30	8	M10	98	35	一	67	54	30	15	35
E1-50×12	50	32	8	M10	98	35	一	67	56	30	15	35
E1-50×16	50	40	12	M10	98	35	一	67	56	30	15	35
E1-50×20	50	40	12	M10	98	35	一	67	54	30	15	35
E1-50×25	50	45	17	M12	98	35	一	80	59	30	17	40
E1-50×32	50	52	24	M12	98	35	一	80	63	30	17	44
E1-50×40	50	65	32	M16	98	35	一	90	73	30	22	50
E1-50×50	50	75	42	M16	98	35	一	100	83	30	24	60
E1-60×20	60	40	12	M10	123	42.5	一	80	54	30	15	35
E1-60×25	60	45	17	M12	123	42.5	一	80	59	30	17	40
E1-60×32	60	45	24	M12	123	42.5	一	80	63	30	17	44
E1-60×40	60	52	32	M16	123	42.5	一	90	73	30	22	50
E1-60×50	60	70	42	M16	123	42.5	一	100	83	30	24	60
