JIS B 6339 BT40 Hydraulic Holder
Built with a high-strength alloy steel body and carbide tip, this dead center provides stable support and wear-resistant performance for precision turning and grinding applications.
Product Details & Technical Resources

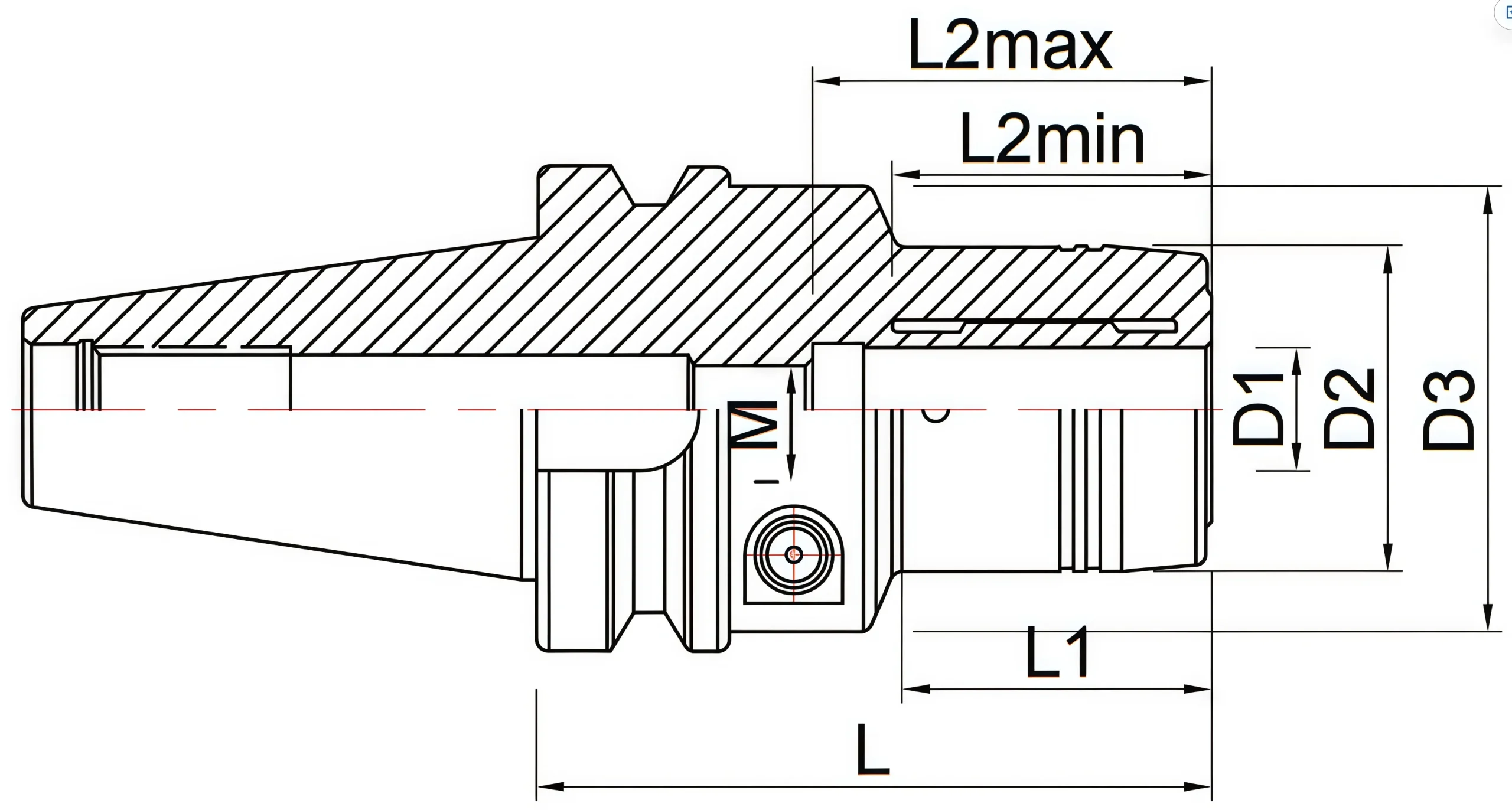

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Access product dimension drawings and structural references to support selection, installation and project planning.
| 型号 MODEL |
尺寸SIZE (mm) |
|||||||
| JIS B 6339-AD | DCONMS | BD1 | BD2 | BD3 | LF | LSCX | LB1 | |
| BT40-HCM06-90 | 40 | 6 | 22 | 26 | 50 | 90 | 37 | 43 |
| BT40-HCM06-120 | 40 | 6 | 22 | 26 | 50 | 120 | 37 | 73 |
| BT40-HCM06-150 | 40 | 6 | 22 | 26 | 50 | 150 | 37 | 103 |
| BT40-HCM06-200 | 40 | 6 | 22 | 26 | 50 | 200 | 37 | 153 |
| BT40-HCM08-90 | 40 | 8 | 24 | 28 | 50 | 90 | 37 | 44.5 |
| BT40-HCM08-120 | 40 | 8 | 24 | 28 | 50 | 120 | 37 | 74.5 |
| BT40-HCM08-150 | 40 | 8 | 24 | 28 | 50 | 150 | 37 | 104.5 |
| BT40-HCM08-200 | 40 | 8 | 24 | 28 | 50 | 200 | 37 | 154.5 |
| BT40-HCM10-90 | 40 | 10 | 26 | 30 | 50 | 90 | 41 | 44.5 |
| BT40-HCM10-120 | 40 | 10 | 26 | 30 | 50 | 120 | 41 | 74.5 |
| BT40-HCM10-150 | 40 | 10 | 26 | 30 | 50 | 150 | 41 | 104.5 |
| BT40-HCM10-200 | 40 | 10 | 26 | 30 | 50 | 200 | 41 | 154.5 |
| BT40-HCM12-90 | 40 | 12 | 28 | 32 | 50 | 90 | 46 | 44.5 |
| BT40-HCM12-120 | 40 | 12 | 28 | 32 | 50 | 120 | 46 | 74.5 |
| BT40-HCM12-150 | 40 | 12 | 28 | 32 | 50 | 150 | 46 | 104.5 |
| BT40-HCM12-200 | 40 | 12 | 28 | 32 | 50 | 200 | 46 | 154.5 |
| BT40-HCM14-90 | 40 | 14 | 30 | 34 | 50 | 90 | 46 | 44.5 |
| BT40-HCM14-150 | 40 | 14 | 30 | 34 | 50 | 150 | 46 | 104.5 |
| BT40-HCM16-90 | 40 | 16 | 34 | 38 | 50 | 90 | 49 | 47.5 |
| BT40-HCM16-120 | 40 | 16 | 34 | 38 | 50 | 120 | 49 | 77.5 |
| BT40-HCM16-150 | 40 | 16 | 34 | 38 | 50 | 150 | 49 | 107.5 |
| BT40-HCM16-200 | 40 | 16 | 34 | 38 | 50 | 200 | 49 | 157.5 |
| BT40-HCM18-90 | 40 | 18 | 36 | 40 | 50 | 90 | 49 | 47.5 |
| BT40-HCM18-150 | 40 | 18 | 36 | 40 | 50 | 150 | 49 | 107.5 |
| BT40-HCM20-90 | 40 | 20 | 38 | 42 | 50 | 90 | 51 | 47.5 |
| BT40-HCM20-120 | 40 | 20 | 38 | 42 | 50 | 120 | 51 | 77.5 |
| BT40-HCM20-150 | 40 | 20 | 38 | 42 | 50 | 150 | 51 | 107.5 |
| BT40-HCM20-200 | 40 | 20 | 38 | 42 | 50 | 200 | 51 | 157.5 |
| BT40-HCM25-83 | 40 | 25 | 53 | 57 | 62 | 83 | 57 | 44 |
| BT40-HCM32-83 | 40 | 32 | 60 | 63 | 80 | 83 | 61 | 24.9 |
| BT40-HCM32-105 | 40 | 32 | 60 | 63 | - | 105 | 61 | - |
