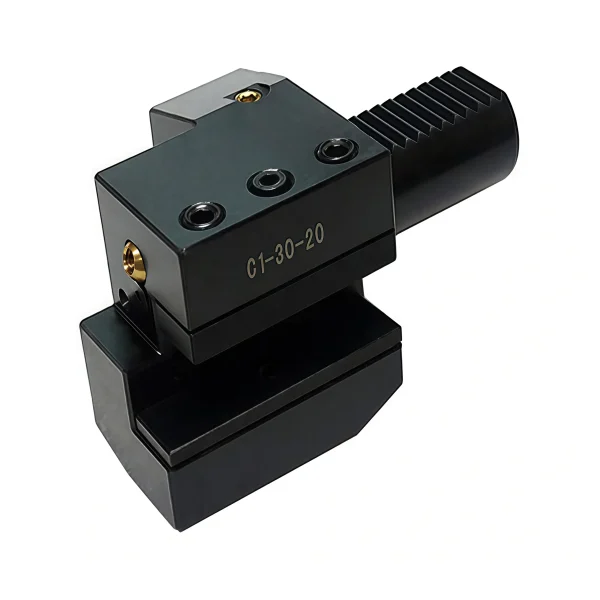

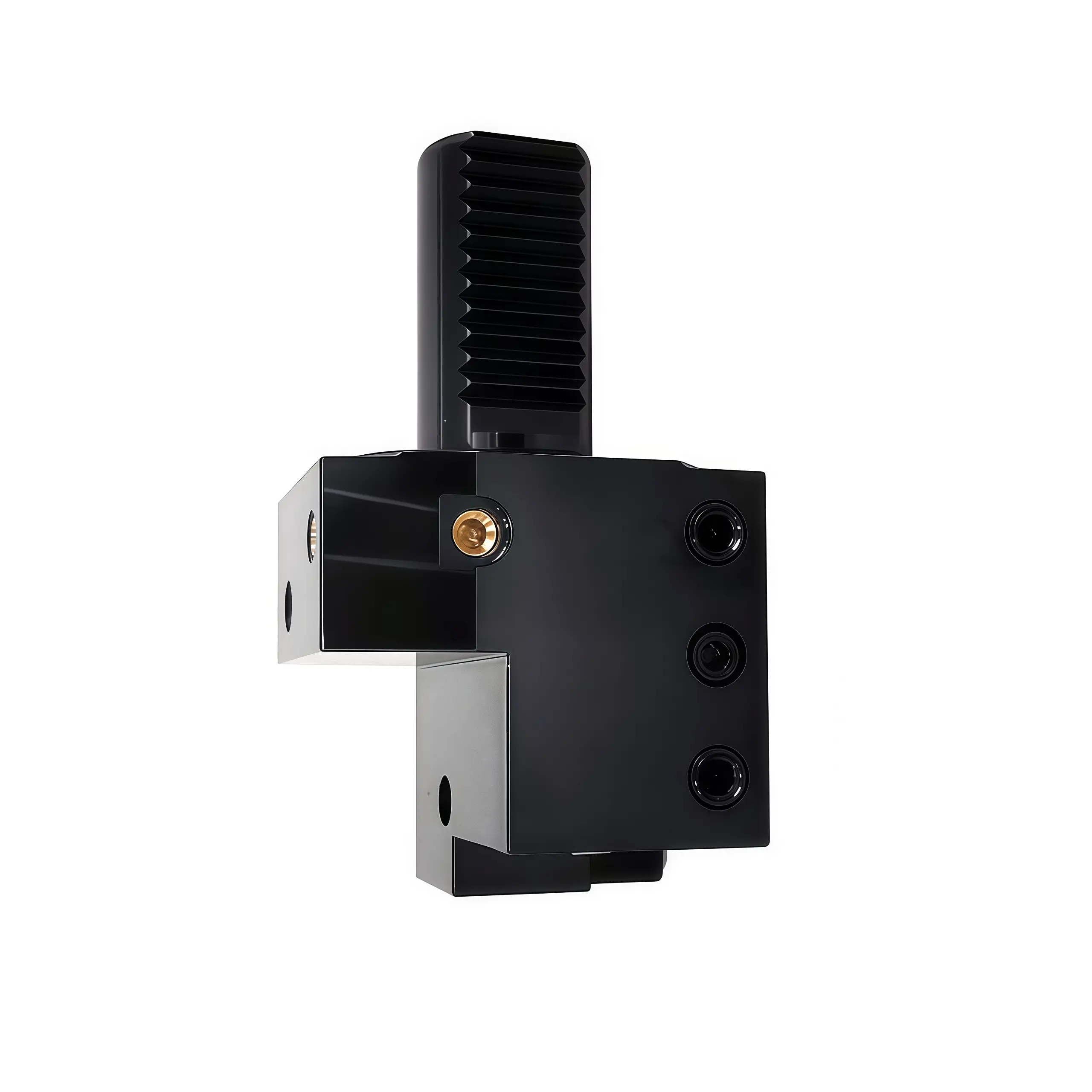

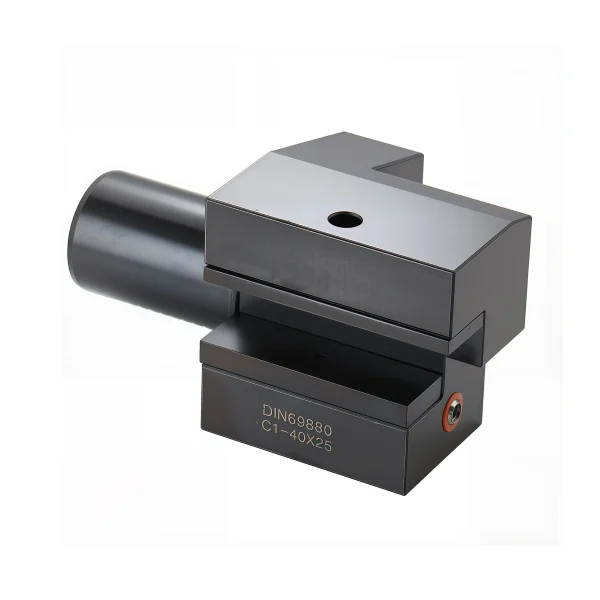

Axial Holder Form C
VDI C1
Built with a high-strength alloy steel body and carbide tip, this dead center provides stable support and wear-resistant performance for precision turning and grinding applications.
Product Details & Technical Resources

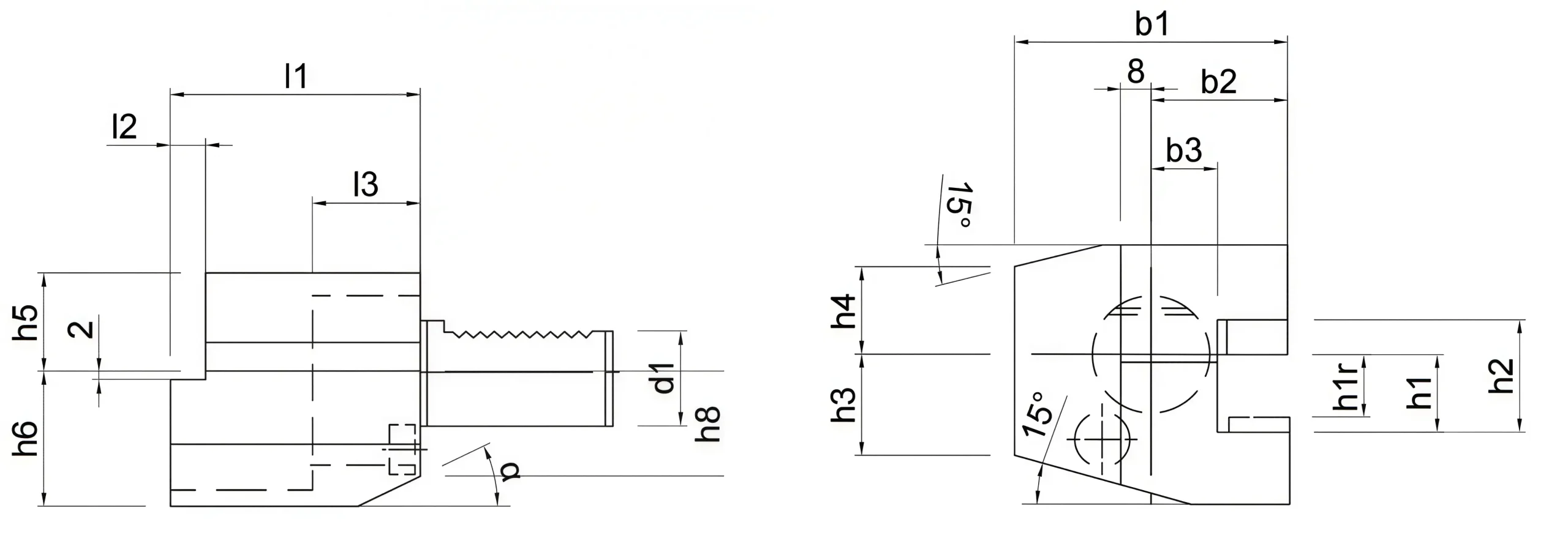

CAD Drawings
Access product dimension drawings and structural references to support selection, installation and project planning.
Technical Specifications
Review key product specifications, including model, size range, accuracy, clamping capacity and compatible machining applications.
| 订单号 order No. |
d1 | b1 | b2 | b3 | h1 | h2 | h3 | h4 | h5 | h6 | h8 | 11 | 12 | 13 | a |
| C1-16×12 | 16 | 43 | 24 | 13 | 12 | 17 | 15 | 15 | 20 | 22 | 19 | 44 | 5 | 20 | 30° |
| C1-20×16/55 | 20 | 52 | 27 | 13 | 16/12 | 22 | 19 | 19 | 25 | 30 | 23 | 55 | 7 | 30 | 30° |
| C1-20×16/50 | 20 | 52 | 27 | 13 | 16/12 | 22 | 19 | 19 | 25 | 30 | 23 | 50 | 一 | 30 | 30° |
| C1-25×16 | 25 | 58 | 33 | 19 | 16/12 | 22 | 22.5 | 22.5 | 25 | 30 | 25 | 55 | 7 | 20 | 30° |
| C1-25×20 | 25 | 62 | 37 | 19 | 20/16 | 29 | 22.5 | 22.5 | 28 | 35 | 28 | 55 | 7 | 20 | 30° |
| C1-30×20 | 30 | 70 | 35 | 17 | 20/16 | 29 | 26 | 22 | 28 | 38 | 30 | 70 | 10 | 30 | 25° |
| C1-40×25 | 40 | 85 | 45.5 | 21 | 25/20 | 34 | 35 | 30 | 32.5 | 48 | 一 | 85 | 12.5 | 30 | 一 |
| C1-50×32 | 50 | 100 | 50 | 26 | 32/25 | 41 | 42 | 35 | 35 | 60 | 一 | 100 | 16 | 40 | — |
| C1-60×32 | 60 | 125 | 62.5 | 33 | 32/25 | 41 | 46 | 42.5 | 42.5 | 62.5 | 一 | 125 | 16 | 40 | 一 |
